• 定量包裝
  • 料斗秤、配料、工業控制

功能與特性

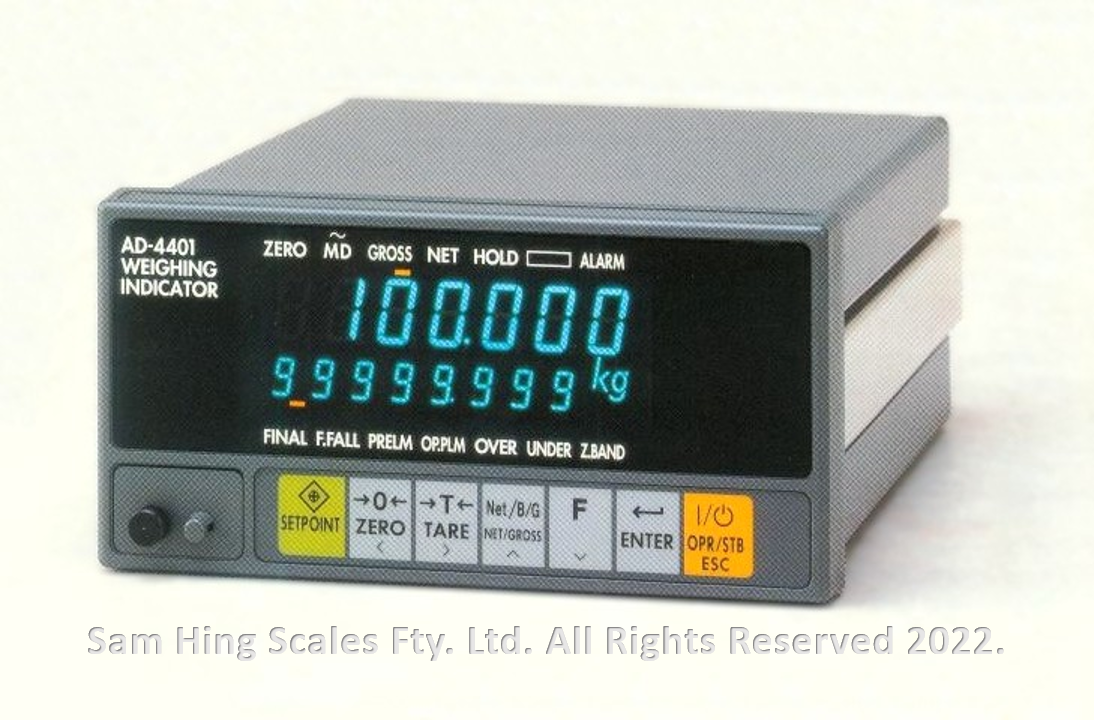

  • This is a very popular choice of indicator for single ingredient batching or proportioning process. Its built in process weighing procedure provides complete single ingredient weighing from two speed feeder control, free fall correction, to discharge of material. This keep PLC programming to minimal and, in simpler applications, completely avoid the need of a PLC. It also vastly reduces the cost and time for system development. The indicator provides 'Gain in weight' and 'Lose in weight' procedures for different needs. User can enter the target weight via the front panel, an external thumbwheels or even through the serial interface (optional RS-232 or RS-485). The process can then be started by triggering a switch and the system will run complete the whole process.
  • 100 times/sec. High speed sampling.
  • High display resolution to 16,000 counts.
  • Up to 1 million counts of A/D resolution.
  • Weigh-in and Loss-in-Weight batching. Monitor & control weighing and batching with external or internal resolution.
  • Fuzzy and Automatic Free Fall Compensation (AFFC) for consistently accurate batching results.
  • Enter control set points through front keys or remotely though external thumb wheels.
  • Automatic weight and/or count accumulation.
  • Sub display provides feedback on all set points& simplifies calibration.
  • Supplementary flow function assures accurate performance on each batch.
  • A host of communications capabilities: RS-232C, RS-422/485, BCD, analog output and standard 4-20mA Current Loop. Connect up to 10 AD-4401's with A&D's RS-422/485.
  • Compact DIN size housing speeds installation & reduces space.
  • Digital Span Calibration enhances technical support and difficult installations.
  • Splash proof front panel and keys (IP-65).
  • High sensitivity 0.3(μV/d for more accurate measurements.
  • Automatic batching and customer programming capability.
  • Hold and peak hold functions.
  • User programmed timer settings and alarms.
