• 工控可編程儀表
  • 用戶可自訂人機介面(HMI)及設計操作流程
  • 數據庫功能
  • 彩色觸膜屏
  • 多國語言介面(中文暫只限簡體版)

功能與特性

  • Sam Hing can provide a complete solution to our customers, starting from process planning, database structure modelling, user interface design, programme coding, system commissioning and calibration.

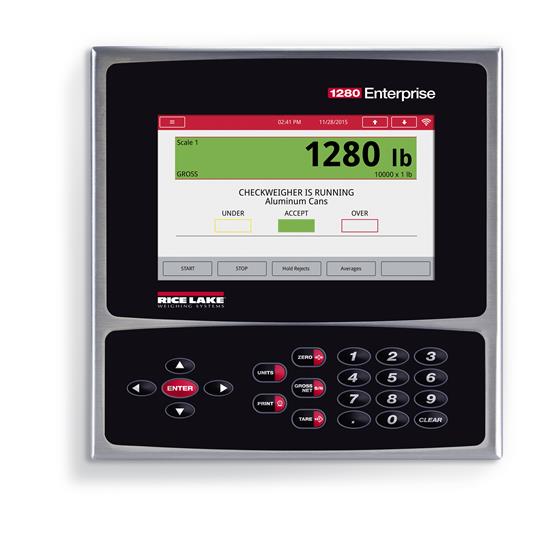

  • Seven-inch, 800 x 480 pixel, graphical color display that adjusts for ambient light conditions
  • Highly customizable graphical user interface

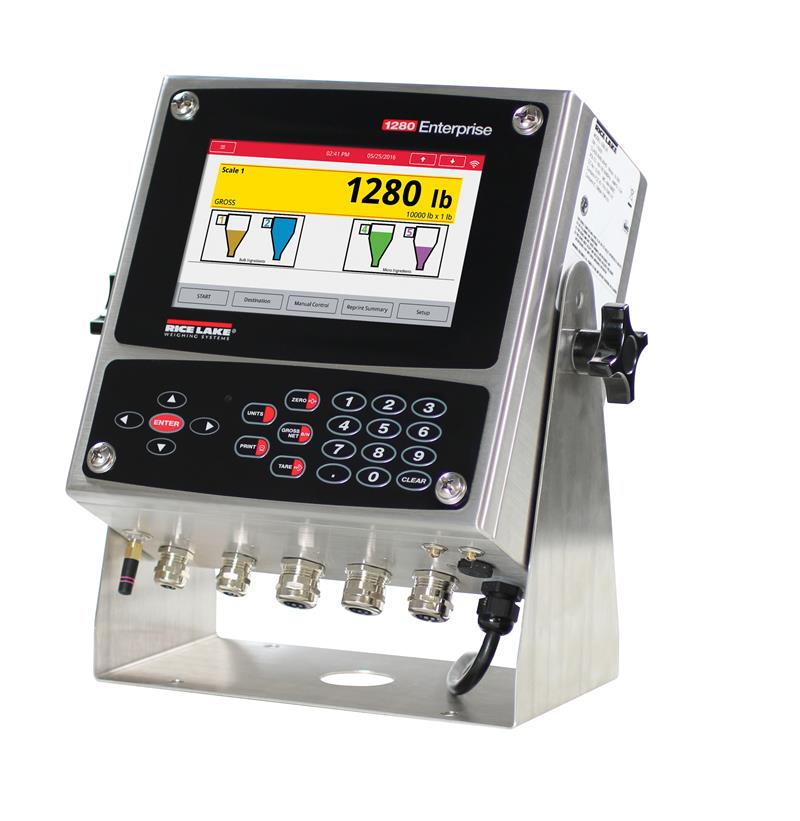

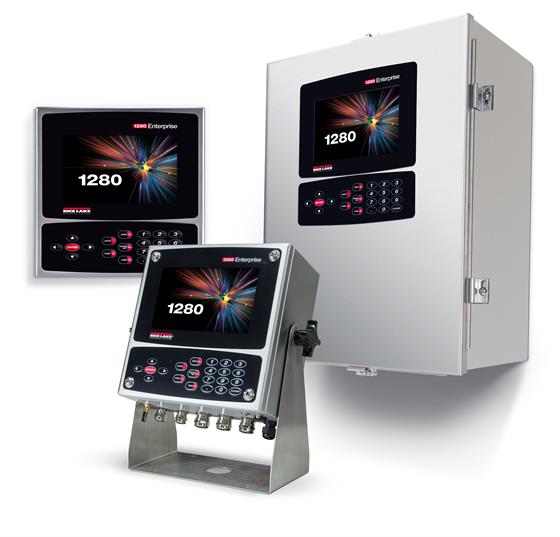

  • Three different enclosure types: universal with tilt stand, panel mount and wall mount
  • Five-wire resistive color touchscreen that can be used with gloves
  • On-screen keyboard available during entry mode or use an external keyboard
  • Multi-language operation and text entry
  • Keypad for scale operations, numeric entry and navigation
  • More than 150 built-in functions for programming
  • Customize applications and data tables with iRite™ software
  • Built-in web server for remote access, systems integration and data monitoring
  • Up to eight scales supporting four scale types: Analog load cell scales, Total scales, Serial scales, Program scales
  • Multi-range/interval weighing functions
  • Eight digital I/O for control and pulse count
  • 100 setpoints, 18 configurable setpoint types
  • 22 soft keys with 10 user-defined
  • Two RS-232 and RS-485 serial ports
  • USB, Ethernet TCP/IP, WiFi and Bluetooth®
